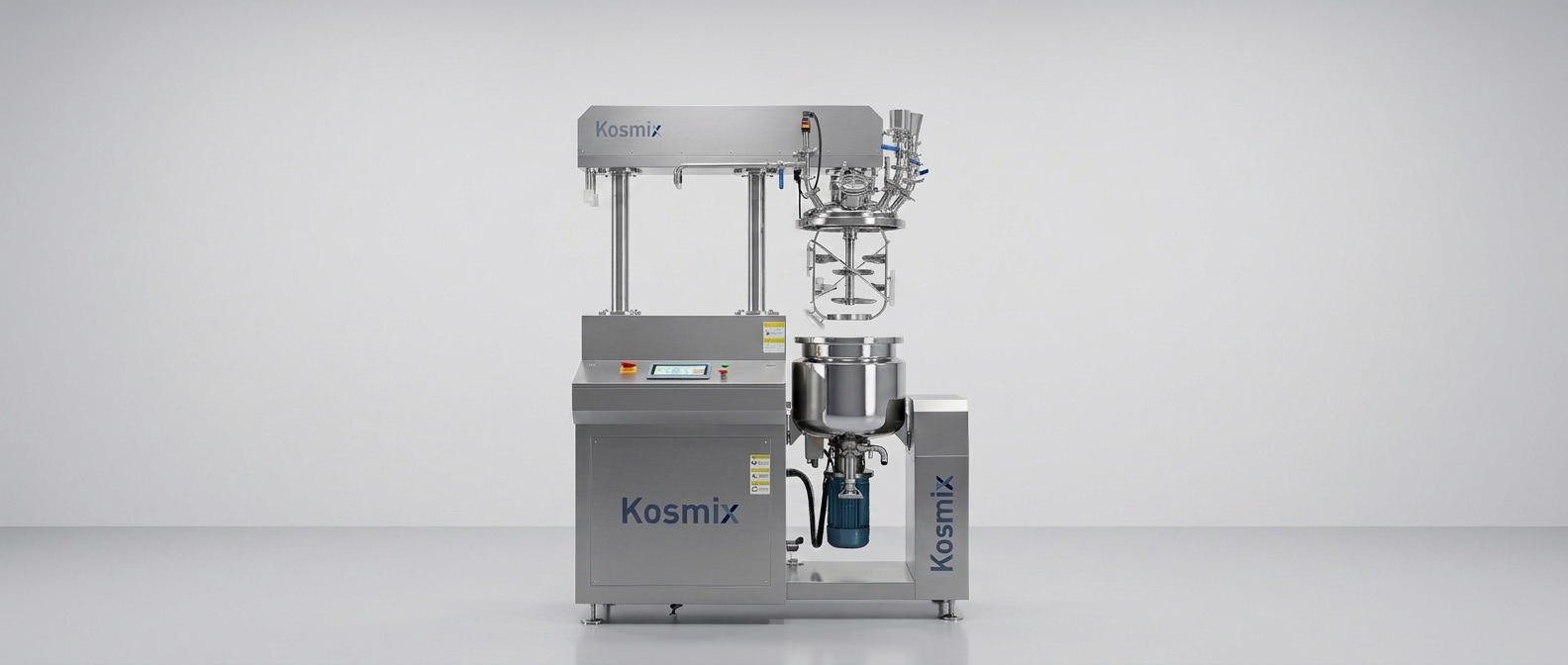

50L Vacuum Emulsifying Mixer (KVM-H50)

Scalable 50L Vacuum Emulsifying Mixer for Cosmetic Pilot & Small-Batch Production

Seamlessly bridge R&D formulation to mass manufacturing with zero recipe risk. High-shear homogenizing, full CIP/SIP ready, and ASME/CE compliant.

1. Lid & Hydraulic Lift
2. High-Shear Homogenizer
3. Scraper Agitator
4. 3-Layer Jacketed Tank
5. Vacuum System
6. Smart PLC Control
  • EU CE & ATEX Certified (Full GMP / EN 10204 3.1 Traceability)
  • 100% Siemens & Schneider Electricals (Easy Local Maintenance in Poland)
  • DDP Shipping Available to Poland & EU (Hassle-free customs clearance)
  • 24/7 Remote Tech Support & Global Warranty (Zero recipe/downtime risk)

Eliminate scale-up failures. The 50L unit matches the exact fluid dynamics and tip speed ratio of 500L–2000L mass production tanks.

Perfect Pilot Scale

High-Shear Emulsification

Bottom/top high-shear homogenizer (0–3000 RPM) creates ultra-fine particles (0.2–2μm) for smooth, stable creams, serums, and emulsions.

Flexible & User-Friendly

Hydraulic lifting cover for easy cleaning and inspection; dual-way scraping agitator prevents wall sticking and burnout.

Product Specifications

Kosmix KVM-50

Industrial vacuum emulsifying mixer parameters engineered for high-precision technical performance and scalable manufacturing operations.

Parameter

Specification (Kosmix KVM-50)

Working Capacity
50 Liters (Min. working volume: 15L)
Main Tank Structure
3-Layer Jacket (Heating, Cooling, Insulation)
Homogenizer Speed
0 – 3000 RPM (Frequency Inverter Drive)
Scraper Agitator Speed
0 – 63 RPM (Teflon Scrapers, Counter-Rotating)
Vacuum Degree
-0.09 MPa to -0.098 MPa
Lifting System
Hydraulic Cover Lifting Mechanism
Heating Method
Electric Heating / Steam Heating Optional
Request Engineering Blueprint

Playlist

1 Videos

QUALITY & COMPLIANCE

Certified Industrial Standards

CE Certified
ISO9001 Quality System
SUS316L Steel Grade
GMP/FDA Compliant

TRUSTED INTEGRATION

Partner Ecosystem

SIEMENS

ABB

SCHNEIDER

BURGMANN

ENGINEERING PERFORMANCE

INDUSTRIAL GRADED SPECIFICATIONS

01. R&D TO PILOT SCALE

0–3000 RPM

Precise scale-up from lab to production.

02. HYDRAULIC LIFTING

SMOOTH OPERATION

Integrated hydraulic system for easy cleaning.

03. SURFACE FINISH

RA < 0.4μM

High-grade SUS316L steel with mirror polish.

COMPLETE PRODUCTION FLOW

Beyond the Mixer: Complete Cosmetics Processing Line

We don't just sell machines; we design complete, ready-to-run production systems for your factory.

STAGE 01: PRE-TREATMENT

Water & Oil Phase Pre-melting Vessels

High-efficiency thermal jacketed vessels designed to prepare and melt raw ingredients before final emulsification.

Vacuum Transfer

STAGE 02: CORE PROCESSING

Kosmix 50L Vacuum Emulsifier

The heart of the line. Advanced homogenizer ensuring seamless micro-emulsions, precision heating, and stable vacuum operations.

Direct Discharge

STAGE 03: POST-PROCESSING

Storage Tank & Cream Filling

Storage Tank -> Semi-Automatic/Automatic Cream Filling Machine. Fully integrated buffer storage leading directly into precision dosing.

Final Packaging

Contact Kosmix Experts

Contact an expert to get your personalized 50L solution.
